Condition: New

Applicable Industries: Manufacturing Plant, Ultrasonic Water treament

Showroom Location: None

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: New Product 2020

Warranty of core components: 1 Year

Core Components: ultrasonic

Material: Stainless steel

Weight: 2.5KGS

Size: Customized

Power: Customized

Warranty: 1 Year

Productivity: 1000L/Hour

Application: Ultrasonic algae control

Feature: Reverse Osmosis Water Filtration

After Warranty Service: Video technical support, Online support

Local ServiceÂ Location: None

After-sales Service Provided: Online support

기본 정보

결제 및 배송 조건

Packaging Details: Carton

Supply Ability: 10000 Set/Sets per Month

제품 설명

Product Description

Application

The water contains a microbiome of various species of larvae in suspension that will attach themselves to marine structures and surfaces if the conditions allow. These larvae require a number of environmental criteria to be in an optimum state to allow them to begin the colonisation process. These criteria include water temperature, salinity, light levels, time of year, concentration of larvae and seed in the water. These along with other criteria can affect colonisation depending on the species and type of growth. A suitable surface to attach to is also essential.
No biological hazard: Carassius auratus, Paramecium and Daphnia magna have a good tolerance to the ultrasonic energy, and the ultrasonic wave has no obvious impact on fish, protozoa and metazoa. It can control the radiation energy of ultrasonic wave and selectively inhibit harmful cyanobacteria without obvious harm to submerged plants, fish and plankton, so as to improve the aquatic ecological environment. Low cost: compared with the traditional chemical and physical methods, the equipment, consumables and personnel investment of ultrasonic method are lower. High efficiency: the working efficiency of the dual excitation ultrasonic transducer is more than twice that of the traditional ultrasonic transducer. The destruction of cyanobacteria cells by ultrasound is physical damage. Algae affected by ultrasonic energy lose their activity immediately, which is the most effective method among
all methods. Precision strike: according to the different pollution levels, adjust the ultrasonic power to achieve precision
strike, so as to minimize the impact on other organisms; Reuse: the ultrasonic cyanobacteria prevention and control ship can be purchased at one time and can be reused. According to the characteristics of rapid cyanobacteria outbreak and tight disposal time, the ultrasonic cyanobacteria prevention and control ship can directly go to the site to deal with the hazards The dirt is not easy to adhere and scale: the ultrasonic emission vibration source is set outside the pipeline, and the launching tool head is installed in the cooling water pipe, which directly acts on the water, so that the broken material can be broken and refined, thus suspending in the circulating cooling water in the pipeline, making it difficult to adhere to the pipe wall for scaling.

How it works The transducer, submerged just beneath the surface, is programmed to generate ultrasonic waves that inhibit the growth and spread of algae.

generate ultrasound signals that are extremely effective at controlling algae, biofilm and water-borne pathogens, without doing any harm to fish, plants or wildlife. With the use of chemicals to control algae now being banned, the obvious solution to algal problems is ultrasound.

Company Profile

Ginpertec(Suzhou)Co.,ltd is a professional manufacure that develops, produces and sells ultrasonic equipment from the facts. The company is committed to providing users with skilled and reliable ultrasonic products to meet the needs of users. The company has a research and development team composed of domestic high-quality talents, a relatively complete management system and a nationwide sales and service network. The products are mainly used in ultrasonic industrial cleaning, medical, cosmetic, ultrasonic precision spraying, welding, ultrasonic water treatment, ultrasonic household and other related ultrasonic applications. The company pays attention to the development and application of high-tech, and takes technology as the guide and provides products with the attitude of professional enterprises. Companies adhering to the "quality-oriented, integrity for the purpose, dedication to innovation, customer-first, and dedication to customer service" business philosophy. We serve our customers with sincere enthusiasm and positive attitude. Products were exported to over 80 countries , has been praised by customers

FAQ

1. who are we?
We are based in Jiangsu, China, start from 2019,sell to Eastern Europe(20.00%),North America(20.00%),Western Europe(10.00%),Southern Europe(10.00%),Central America(10.00%),South America(10.00%),Northern Europe(4.00%),Domestic Market(4.00%),Eastern Asia(3.00%),Oceania(2.00%),Southeast Asia(2.00%),Mid East(1.00%),South Asia(1.00%),Africa(1.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Ultrasonic system,Ultrasonic transducer,Ultrasonic machine,Impedance analyzer,Piezoelectric ceramic

4. why should you buy from us not from other suppliers?
Serving for Ultrasonic application 12 years ,very familiar with the ultrasonic industry Technical support from industry ultrasonic experts , have strict quality control ,Honest and trustworthy is our first standard

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,PayPal,Western Union;
Language Spoken:English,Chinese

Mass Productions

Parameters

Description	Model	Frequancy	Power
		(kHz)	(W)

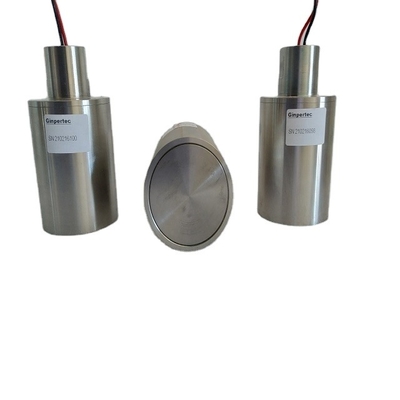

Transducer	GPA-8SH-3020(54)-D59.5110	20	80
Transducer	GPA-4SH-3825--D76*110	25	50
Transducer	GPA-4SS-3528-D59.5*110	28	50
Transducer	GPA-4SS-5028-D76*110	28	100
Transducer	GPA-4SS-3833-D59.5*98	33	50
Transducer	GPA-4SS-3840-D59.5*85	40	50
Transducer	GPA-4SS-3840-D59.5*98	40	50
Transducer	GPA-4SS-3840-D76*110	40	50
Transducer	GPA-4SS-3045-D59.5*85	45	30
Transducer	GPA-4SS-3045-D59.5*98	45	30
Transducer	GPA-4AS-3050 -D59.5*85	50	30
Transducer	GPA-4SS-3868-D59.5*98	68	50

Installation Instructions

Case Show

Ultrasonic Application

There is an alternating cycle of positive and negative pressures in the propagation of ultrasonic waves in water. At the positive
pressure phase, the water molecules are squeezed to increase the density of water, and the negative pressure phase causes the
water molecules to be sparsely dispersed and the water density to decrease. When the amplitude is large enough, the average
distance between water molecules in the negative pressure phase will exceed the critical molecular distance of water, causing the
continuity of the water body to be destroyed and forming a cavitation nucleus. The cavitation nucleus rapidly expands to form
cavitation bubbles, which are rapidly compressed or even collapsed in the subsequent positive pressure phase, which is the
ultrasonic cavitation effect.

The pseudo-cavitations inside the algae cells cavitation under the action of ultrasonic waves, forming cavitation bubbles, and
then the cavitation bubbles collapse. The shock wave and high temperature and high pressure caused by the collapse can destroy the
active substances inside the algae cells, and also destroy the structure inside the cells and interfere with the synthesis of
chlorophyll. At the same time, the free radicals generated can also oxidize the algal toxins released by cell rupture.
2.2 Principle of mechanical action

At the appropriate frequency, the shock wave, jet and radiation pressure caused by ultrasonic waves can make the algae cells
elastically vibrate. When a certain sound intensity is reached, the mechanical vibration of the algae cells exceeds its elastic
limit, causing the cell wall and pseudo-cavitation to rupture, making the algae cells Loss of partial activity and viability. This
is the effect of the ultrasonic mechanical effect.

3 Factors affecting the effect of ultrasonic algae removal

In the ultrasonic algae removal process, the frequency, sound intensity and radiation time (frequency) of the ultrasonic wave will
directly affect the algae removal effect.

3.1 Ultrasonic frequency is a key factor in ultrasonic algae removal technology

When the ultrasonic frequency is low, the cavitation bubble has sufficient time to generate the maximum negative pressure without
breaking, so that the cavitation bubble will generate a stronger shock wave when it collapses. When the frequency of the
ultrasonic wave is high, the pseudo-cavitation does not have enough time for cavitation, and the impact force generated during the
collapse is relatively weak. When the frequency of external action is close to the frequency of the algae itself, it will cause
resonance and cause cracking of the cavitation bubble.

According to the Rayleigh-Plessent formula:

R is the bubble radius; η is the viscosity coefficient; σ is the surface tension; ρ is the medium density; and P0 is the ambient
pressure. It can be estimated that the optimal inhibition condition of microcystis and anabaena common in water is between 20-80
kHz.

3.2 Ultrasonic sound intensity (power) is also an important factor in ultrasonic algae removal

Sound intensity is generally expressed in W/cm?. At 15 kHz, the required sound intensity for cavitation bubbles is 0.16-2.6 W/cm?,
and at 500 kHz, the required sound intensity for cavitation bubbles is 100-400 W/cm?. In theory, the increase in sound power at
the same frequency can make the cavitation more intense and the algae removal effect is better. However, in practical
applications, algae cells have a certain saturation effect on sound waves. At the same time, excessively high sound intensity will
not only affect the aquatic organisms, but also generate a large number of cavitation bubbles, which will hinder the spread of
sound waves in the water body and affect the range of algae removal. Moreover, too strong cavitation will The algae cells are
directly broken, releasing the algal toxins in the cells into the water, which in turn affects the water quality.

Studies have shown that low-intensity ultrasonic radiation does not affect aquatic plants and animals, and it is also an ideal
combination of algae removal and algae removal. Therefore, in practical applications, low-intensity ultrasonic radiation is
selected.

3.3 Ultrasonic radiation time (frequency) will also affect the performance of ultrasonic algae removal

With the increase of ultrasonic irradiation time, the effect of ultrasonic algae removal will also increase. After reaching a
certain dose, the removal rate of algae will not change much. This is because the cavitation intensity generated by the fixed
ultrasonic device under certain power and frequency radiation is constant, and the extended ultrasonic treatment time cannot
change the ultrasonic cavitation intensity, so it should be reasonably controlled in terms of ultrasonic treatment time.

In addition, different treatment modes have different inhibitory effects on algae. Multi-frequency ultrasonic irradiation of algae
can enhance the inhibition of algae. The higher the frequency of treatment, the better the immediate removal of algae, and the
multiple removal effect can be increased by 59.09% compared with the single action. Therefore, in the actual treatment,
multi-frequency intermittent ultrasonic treatment will be an effective method for controlling algae and inhibiting algae growth.

4 Multi-frequency low frequency low intensity ultrasound actual treatment effect and conclusion

In cooperation with the Institute of Hydrobiology of Jinan University and the Guangdong Reservoir Blue Algae Control Center, a
small eutrophic algae cultivation enclosure was established in the Liuxihu Reservoir in Conghua, Guangzhou, and an ultrasonic
algae inhibition experiment was carried out.

4.1 Processing effect of different frequency segments

Three wide-band ultrasonic transducers with a frequency bandwidth of 20-50 kHz, 60-100 kHz, and 100-150 kHz are used with an
intelligent ultrasonic power source to treat the water body rich in anabaena, 30 minutes a day for 6 days.

Company Profile

Ginpertec(Suzhou)Co.,ltd is a professional enterprise that develops, produces and sells ultrasonic equipment
from the facts. The company is committed to providing users with skilled and reliable ultrasonic products to meet theneeds of users. The company has a research and development team composed of domestic high-quality talents, a relatively complete management system and a nationwide sales and servicenetwork.The products are mainly used in ultrasonic
industrial cleaning, medical, cosmetic, ultrasonic precision spraying, welding, ultrasonic water treatment, ultrasonic household
and other related ultrasonic applications.The company pays attention to the development and application of high-tech, and takes
technology as the guide and provides products with the attitude of professional enterprises.Companies adhering to the"quality-oriented, integrity for the purpose, dedication to innovation, customer-first, and dedication to customer service"
business philosophy. We serve our customers with sincere enthusiasm and positive attitude
Products were exported to over 80 countries , has been praised by customers
