Immersive Ultrasonic Transducers Hotels Ultrasonic Transducer Package Pack For Submersible Transd

Ultrasonic Transducer Pack of Immersible Ultrasonic Transducers Pack

01: Application

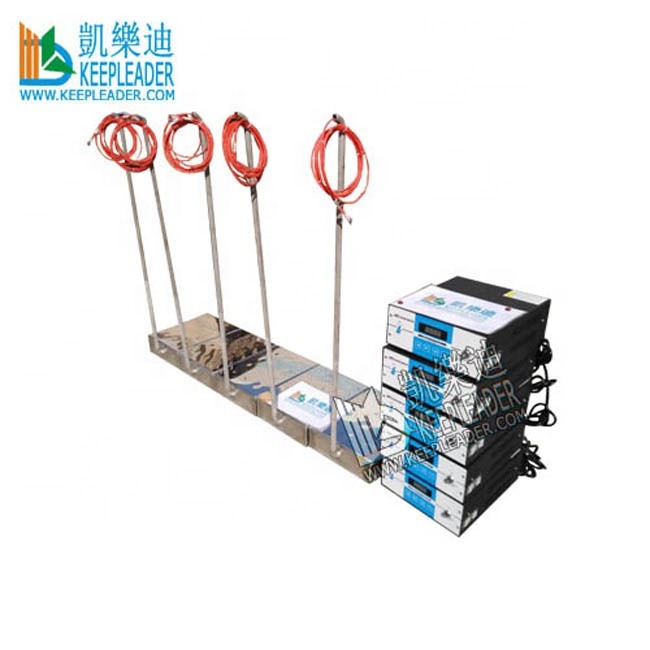

Ultrasonic Transducer Pack of Immersible Ultrasonic Transducers Pack is possible using submersible ultrasonic systems. All submersible ultrasonic transducer pack is composed of 1 or more submersible transducer packs, and 1 or more ultrasonic generator which connect to these packs to create an ultrasonic aqueous cleaner out of any existing tank. Submersible transducers for aqueous cleaners are hermetically sealed stainless steel packs, approximately 80~100mm tall, which contain any number of individual ultrasonic transducers, the submersible/immersible transducer pack is positioned on the tank bottom or sides, and connected to the ultrasonic generator using a liquid-tight riser tube, which passes the electrical cable through the top of cleaning tank, other electrical mounting options include the use of bulkhead mounts, which require that a hole be cut into the tank bottom through which the electric cable will pass

Ultrasonic Transducer Pack of Immersible Ultrasonic Transducers Pack is often used special shape, size or positioned ultrasonic agitation solution in ultrasonic cleaning, the frequency , power and size of transducer pack is optional

Ultrasonic Transducer Pack of Immersible Ultrasonic Transducers Pack can clean hardware, electronics, clocks, machinery, tools and other solid metal and plastic subjects

02: Principles

Sound is caused by the propagation of pressure and density fluctuations (compression and rarefaction of molecules) in elastic medium, ultrasonic sound is not audible for human hear, ultrasonic cleaning is aqueous cleaning by tremendous bubbles imploded jetting in liquid caused by ultrasonic cavitation effect, immersible ultrasonic transducer pack is hermetically sealed stainless steel container, which contains a number of transducer elements. These transducers offer the major advantage of versatility in system design, the custom cleaning tank can be nearly any size that is appropriate to the application, and the transducers can be mounted so that the ultrasonic energy is directed and concentrated where it is needed most, in many cases, our customers already have an existing tank, which they wish to convert into an ultrasonic aqueous cleaning, or solvent cleaning system

02: Parameter

03: Character

Material made of SUS316 2~2.5mm stainless steel

The Surface of vibration pack is electroplated with hard chromium 5um

Can design movable hook device for easy installation or movement

Ultrasonic transducer is fixed with special imported glue and welding screws

Ultrasonic frequency is optional, 28khz, 40khz or bigger as demanding

Electrical system of composed by integrated circuit is reliable and durable

Microcomputer controlled ultrasonic generator has auto wave sweep function

Ultrasonic Transducer Pack of Immersible Ultrasonic Transducers Pack can install flexiblely basing on your pratice

Ultrasonic Transducer Pack of Immersible Ultrasonic Transducers Pack has water-tight riser tube or soft tube for cable

Ultrasonic Transducer Pack can be customzied, please confirm details of your preferred features before order
